Introduction to STM8S105S6T6C
The STM8S105S6T6C is an advanced 8-bit microcontroller developed by STMicroelectronics. It belongs to the STM8S series and offers a wide range of features and capabilities that make it suitable for various applications. Whether you're designing consumer electronics, home automation systems, or automotive applications, the STM8S105S6T6C provides the necessary performance and flexibility to bring your ideas to life.
Features
The STM8S105S6T6C microcontroller incorporates a host of features that contribute to its performance and versatility:
- STM8 Core: The microcontroller is built around the STM8 core, which operates at a maximum frequency of 16 MHz. The STM8 core provides excellent performance and efficiency, allowing for efficient execution of tasks and real-time processing.
- Flash Memory and RAM: It features 32 KB of Flash memory for program storage and 2 KB of RAM for data storage. The ample Flash memory allows for the implementation of complex applications, while the RAM provides efficient data manipulation and storage during runtime.
- Advanced Peripherals: The STM8S105S6T6C integrates a variety of advanced peripherals, including UART, SPI, I2C, and GPIO interfaces. These peripherals enable seamless communication with external devices, facilitating data exchange and control in connected applications.
- Analog-to-Digital Converter (ADC): It includes a 10-bit ADC with up to 8 channels, allowing for precise analog signal acquisition. The ADC is particularly useful for applications that require accurate analog-to-digital conversion, such as sensor data acquisition and measurement.
- Timers and PWM Outputs: The microcontroller incorporates timers and Pulse Width Modulation (PWM) outputs, enabling precise timing and control. These peripherals are particularly useful for applications that require accurate timing, such as motor control, signal generation, and power management.
- Communication Interfaces: The STM8S105S6T6C provides a range of communication interfaces, including UART, SPI, and I2C. These interfaces facilitate seamless communication with other devices, enabling data exchange and control in connected applications.
- GPIOs: The microcontroller includes multiple General-Purpose Input/Output (GPIO) pins, allowing for flexible interfacing with various external components and peripherals. The GPIOs provide digital input and output capabilities, enabling control and sensing in a wide range of applications.
- Development Tools: STMicroelectronics provides a comprehensive set of development tools to support developers working with the STM8S105S6T6C microcontroller. These tools include the ST Visual Develop (STVD) Integrated Development Environment (IDE) and various evaluation boards, which streamline the development process and accelerate project setup.
Specifications
The following table provides an overview of the key specifications for the STM8S105S6T6C microcontroller:
| Parameter | Value |
| Core | STM8 |
| Clock speed | Up to 16 MHz |
| Flash memory | 32 KB |
| RAM | 2 KB |
| ADC resolution | 10 bits |
| UART interfaces | Multiple |
| SPI interfaces | Multiple |
| I2C interfaces | Multiple |
| GPIOs | Multiple |
| Timers | Multiple |
| PWM outputs | Multiple |
| Operating voltage range | 2.95V to 5.5V |
| Operating temperature range | -40°C to +85°C |
Conclusion
The STM8S105S6T6C microcontroller from STMicroelectronics offers a powerful and versatile solution for a wide range of applications. With its advanced features, ample Flash memory, and rich set of peripherals, it provides developers with the necessary tools to create innovative and feature-rich devices.
Whether you're designing consumer electronics, home automation systems, or automotive applications, the STM8S105S6T6C microcontroller offers the capabilities required to meet the demands of your application. With its advanced peripherals, high-resolution ADC, and precise timers and PWM outputs, it enables seamless connectivity, accurate signal acquisition, and efficient control.
STMicroelectronics provides a comprehensive suite of development tools, including the ST Visual Develop (STVD) IDE, to support developers throughout the development process. These tools streamline code development, debugging, and project setup, allowing you to focus on realizing your ideas efficiently.
To learn more about the STM8S105S6T6C microcontroller, refer to the datasheet and reference manual provided by STMicroelectronics. These resources offer detailed information on the microcontroller's specifications, pin configurations, electrical characteristics, and programming details.
Choose the STM8S105S6T6C for your next project and unlock the potential of an advanced 8-bit microcontroller. Experience the power of innovation with STMicroelectronics and the STM8S series.
|
|

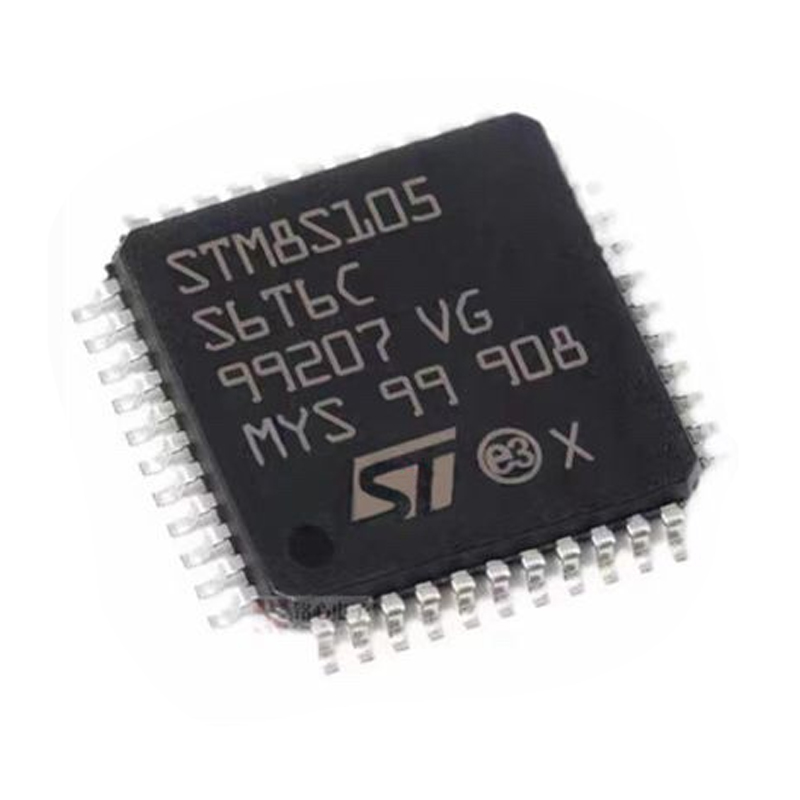

Cheap Wholesale ARM MCU STM8S105S6T6C STM8S105S6 STM8S LQFP-44 microcontroller One-stop BOM service Images
|
