Introduction to STM32F412ZGT6
The STM32F412ZGT6 is a high-performance microcontroller developed by STMicroelectronics. It belongs to the STM32F4 series, known for its advanced features, high processing power, and extensive connectivity options. The STM32F412ZGT6 microcontroller is designed to meet the requirements of a wide range of applications, including industrial control systems, medical equipment, and consumer electronics. With its powerful capabilities and versatile features, it provides developers with a robust platform to create innovative and reliable solutions.
Features
The STM32F412ZGT6 microcontroller incorporates a range of features that contribute to its high performance and flexibility:
- ARM Cortex-M4 Core: The microcontroller is powered by the ARM Cortex-M4 core, operating at a maximum frequency of 100 MHz. The Cortex-M4 core provides advanced processing capabilities, including single-cycle DSP instructions and hardware floating-point unit (FPU), enabling efficient execution of complex tasks and real-time operations.
- Flash Memory and RAM: It features 1 MB of Flash memory for program storage and 256 KB of RAM for data storage. The generous Flash memory capacity allows for the implementation of large software applications, while the ample RAM facilitates efficient data manipulation and storage during runtime.
- Rich Peripherals: The microcontroller integrates a wide range of peripherals, including UART, SPI, I2C, USB, Ethernet, CAN, and GPIO interfaces. These peripherals provide seamless connectivity with external devices, enabling efficient data exchange and control in various applications.
- Analog-to-Digital Converter (ADC): It includes a 12-bit ADC with up to 16 channels, allowing for precise analog signal acquisition. The high-resolution ADC is particularly useful for applications that require accurate analog-to-digital conversion, such as sensor data acquisition and measurement.
- Timers and PWM Outputs: The microcontroller incorporates multiple timers and Pulse Width Modulation (PWM) outputs, enabling precise timing and control. These peripherals are essential for applications that require accurate timing, such as motor control, signal generation, and power management.
- Communication Interfaces: The STM32F412ZGT6 supports various communication interfaces, including UART, SPI, I2C, USB, Ethernet, and CAN. These interfaces enable seamless communication with external devices and networks, facilitating data exchange and control in connected applications.
- USB Interface: It features a USB Full-Speed interface and USB OTG (On-The-Go) capability, allowing for easy connectivity with USB devices and enabling various USB-based applications.
- Operating Voltage Range: The microcontroller operates within a voltage range of 1.7V to 3.6V, making it compatible with a variety of power supply options.
- Development Tools: STMicroelectronics provides a comprehensive set of development tools to support developers working with the STM32F412ZGT6 microcontroller. These tools include the STM32Cube development platform, which offers software components, libraries, and examples, along with various evaluation boards that streamline the development process.
Specifications
The following table provides an overview of the key specifications for the STM32F412ZGT6 microcontroller:
| Parameter | Value |
| Core | ARM Cortex-M4 |
| Clock speed | Up to 100 MHz |
| Flash memory | 1 MB |
| RAM | 256 KB |
| ADC resolution | 12 bits |
| UART interfaces | 6 |
| SPI interfaces | 4 |
| I2C interfaces | 4 |
| Ethernet interfaces | 1 |
| USB interfaces | 2 |
| CAN interfaces | 2 |
| GPIOs | Multiple |
| Timers | Multiple |
| PWM outputs | Multiple |
| Operating voltage range | 1.7V to 3.6V |
| Operating temperature range | -40°C to +85°C |
Conclusion
The STM32F412ZGT6 microcontroller from STMicroelectronics offers high performance, advanced features, and extensive connectivity options for a wide range of applications. With its ARM Cortex-M4 core, rich peripherals, analog-to-digital conversion capabilities, and communication interfaces, it provides developers with a powerful platform to create innovative and reliable solutions.
Whether you're designing industrial control systems, medical equipment, or consumer electronics, the STM32F412ZGT6 microcontroller offers the capabilities required to meet the demands of your application. With its high processing power, rich peripherals, and efficient communication interfaces, it enables seamless connectivity, precise control, and efficient data exchange in various applications.
STMicroelectronics provides a comprehensive suite of development tools, including the STM32Cube development platform, to support developers throughout the development process. These tools streamline code development, debugging, and project setup, allowing you to focus on realizing your ideas efficiently.
To learn more about the STM32F412ZGT6 microcontroller, refer to the datasheet and reference manual provided by STMicroelectronics. Theseresources offer detailed information on the microcontroller's specifications, pin configurations, electrical characteristics, and programming details.
Choose the STM32F412ZGT6 microcontroller for your next project and unlock the potential of high performance, advanced features, and seamless connectivity. With its robust capabilities and comprehensive development tools, you can confidently create innovative solutions that meet the demands of your application.
Note: The information provided in this introduction is based on the available knowledge up to September 2021 and may not reflect the latest updates. For the most accurate and up-to-date information, please refer to the official documentation and resources provided by STMicroelectronics.
|
|

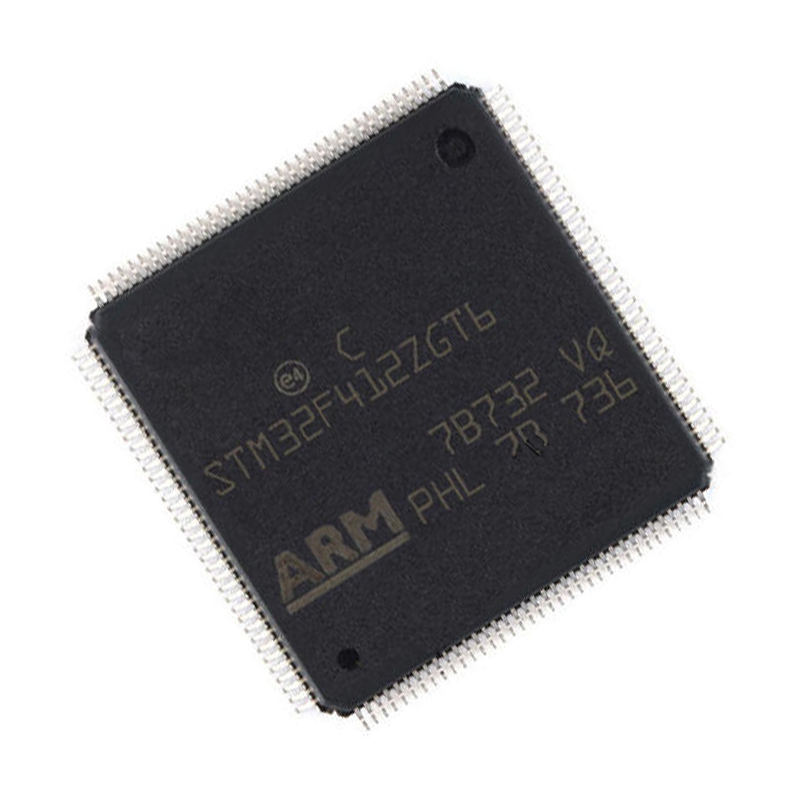

Chip ic distributor ARM MCU STM32F412ZGT6 STM32F412 STM32F LQFP-144 microcontroller Stock IC Images
|
