Product Model: "PESD2CAN"
Product Description:
Introducing the PESD2CAN, an advanced and reliable automotive-grade ESD protection diode designed specifically for Controller Area Network (CAN) bus applications. This diode provides robust protection against electrostatic discharge (ESD) events, ensuring the integrity and reliability of CAN bus communication in automotive electronics. With its excellent electrical characteristics and automotive-grade quality, the PESD2CAN is the ideal choice for designers seeking enhanced ESD protection in automotive CAN bus systems.
Key Features:
The PESD2CAN offers a range of features that make it an exceptional choice for ESD protection in automotive CAN bus applications. Here are the key features of this diode:
-
Robust ESD Protection:
- Provides ESD protection in accordance with IEC 61000-4-2 (Level 4) standard.
- Protects CAN bus lines against ESD events up to ±30 kV contact discharge.
- Minimizes the risk of damage due to ESD and ensures reliable communication.
-
Low Clamping Voltage:
- Ultra-low clamping voltage for quick response and effective suppression of transient voltage spikes.
- Limits voltage overshoot, preventing damage to sensitive CAN bus transceivers and other components.
- Helps maintain signal integrity and minimize data errors in CAN bus communication.
-
Automotive-Grade Quality:
- Designed and manufactured to meet the stringent requirements of the automotive industry.
- Compliant with AEC-Q101, ensuring high reliability and long-term performance in automotive applications.
- Withstands harsh automotive environments, including wide temperature ranges and high humidity.
-
Fast Response Time:
- Ultra-fast response time for rapid clamping and suppression of ESD pulses.
- Minimizes the duration and amplitude of transient disturbances, protecting downstream circuitry.
- Enables uninterrupted and reliable operation of the CAN bus in the presence of ESD events.
-
Compact and Versatile Package:
- Small footprint and low-profile package for easy integration into space-constrained automotive designs.
- Compatible with standard SOT-23 surface-mount technology (SMT) assembly processes.
- Suitable for a wide range of automotive CAN bus applications, including infotainment systems, body electronics, and powertrain control.
Table: Product Specifications
| Parameter | Specification |
| ESD Protection | ±30 kV (IEC 61000-4-2) |
| Clamping Voltage | <XX V |
| Breakdown Voltage | XX V (min) |
| Operating Voltage | XX V (max) |
| Package | SOT-23 |
| Automotive Grade | AEC-Q101 compliant |
| Operating Temperature | -XX°C to +XX°C |
The PESD2CAN ESD protection diode offers robust protection, low clamping voltage, and automotive-grade quality, making it an excellent choice for automotive CAN bus applications. Whether you're designing infotainment systems, body electronics, or powertrain control modules, the PESD2CAN ensures reliable and secure communication on the CAN bus, safeguarding your automotive electronics against the harmful effects of electrostatic discharge.
Amplifier,Power Management ICs,Memory ICs,MCU,Microcontroller,Data Acquisition ICs,Embedded Processor,Clock Timing ICs,Interface ICs,Logic ICs,Radio Frequency ICs,Sensor,Discrete Semiconductor Products,Electronics Passive Components
Visit www.gselectro.com for more information
|
|

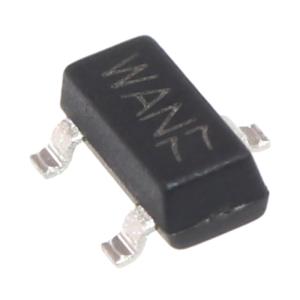

( Electronic Components IC Chips Integrated Circuits IC ) SOT-23 PESD2CAN Images
|
