Product Name: AD8606ARZ
Product Overview:
The AD8606ARZ is a low-power, precision operational amplifier designed for applications that require high accuracy, low noise, and rail-to-rail output swing. This amplifier offers excellent performance with low input offset voltage, low input bias current, and low power consumption, making it an ideal choice for battery-powered devices, portable instrumentation, and sensor signal conditioning. With its versatile features and robust performance, the AD8606ARZ provides engineers and designers with a reliable solution for high-quality amplification.
Key Features:
- Low Power Consumption: The AD8606ARZ operates on a low supply current of 20 µA per amplifier, making it suitable for power-sensitive applications and extending battery life.
- Low Input Offset Voltage: With a maximum offset voltage of 150 µV, this amplifier provides accurate amplification with minimal error.
- Low Noise: The AD8606ARZ features a low input voltage noise of 10 nV/√Hz, ensuring clean signal amplification and reducing interference.
- Rail-to-Rail Output: The amplifier provides rail-to-rail output swing, allowing for maximum utilization of the available supply voltage range.
- Wide Bandwidth: With a -3 dB bandwidth of 1.4 MHz, the AD8606ARZ offers high-speed amplification suitable for applications requiring fast response times.
- High Common-Mode Rejection Ratio (CMRR): The amplifier exhibits a CMRR of 114 dB, ensuring effective rejection of common-mode noise.
- Wide Supply Voltage Range: The AD8606ARZ can operate from a single supply voltage range of 2.7 V to 5.5 V, providing compatibility with a wide range of systems.
- Robust Protection: Built-in protection features include input overvoltage protection and output short-circuit protection, ensuring safe operation and device longevity.
Applications:
- Battery-powered devices
- Portable instrumentation
- Sensor signal conditioning
- Active filters and equalizers
- Audio amplification
- Medical equipment
Product Specifications:
| Parameter | Value |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Operating Temperature Range | -40°C to +125°C |
| Input Offset Voltage | 150 µV (maximum) |
| Input Bias Current | 1 pA (maximum) |
| Input Voltage Noise | 10 nV/√Hz |
| Gain Bandwidth Product | 1.4 MHz (typical) |
| Supply Current per Amplifier | 20 µA (typical) |
| Rail-to-Rail Output | Yes |
| Common-Mode Rejection Ratio | 114 dB |
| Package | 8-Lead SOIC, 8-Lead MSOP, 8-Lead DFN |
The AD8606ARZ is a high-quality operational amplifier that combines precision, low noise, and low power consumption to meet the demands of a wide range of applications. Whether you are designing battery-powered devices, portable instrumentation, or sensor signal conditioning systems, this amplifier delivers reliable and accurate signal amplification. With its compact size and versatile features, the AD8606ARZ can be easily integrated into various designs and provides engineers with the flexibility they need to achieve optimal performance. Choose the AD8606ARZ for your amplification needs and experience exceptional quality and reliability.
Amplifier,Power Management ICs,Memory ICs,MCU,Microcontroller,Data Acquisition ICs,Embedded Processor,Clock Timing ICs,Interface ICs,Logic ICs,Radio Frequency ICs,Sensor,Discrete Semiconductor Products,Electronics Passive Components
Visit www.gselectro.com for more information
|
|

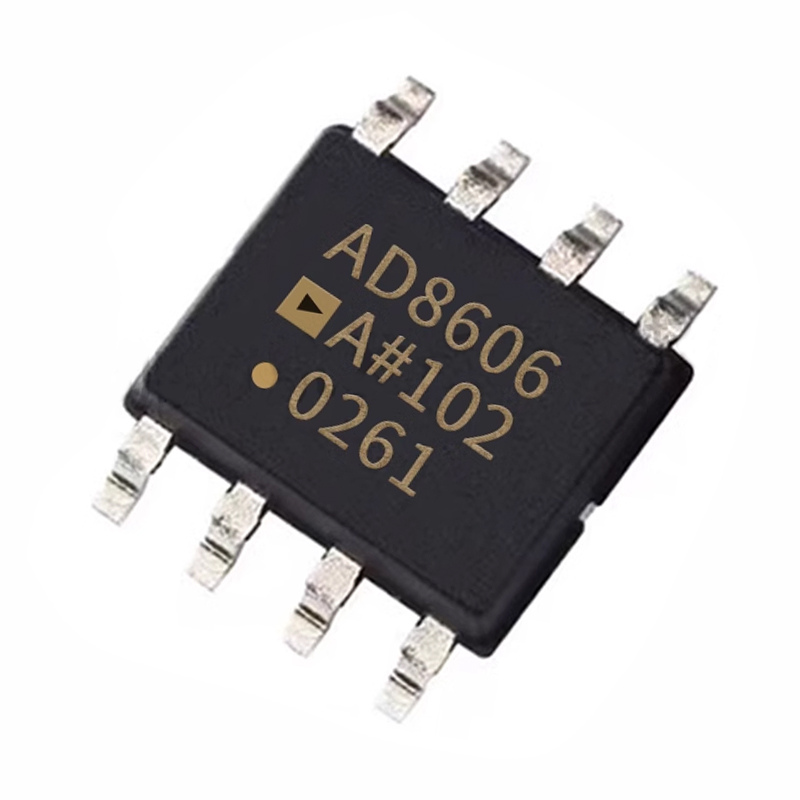

High Quality IC AD8606 10MHZ RRO 8SOIC AD8606ARZ Images
|
