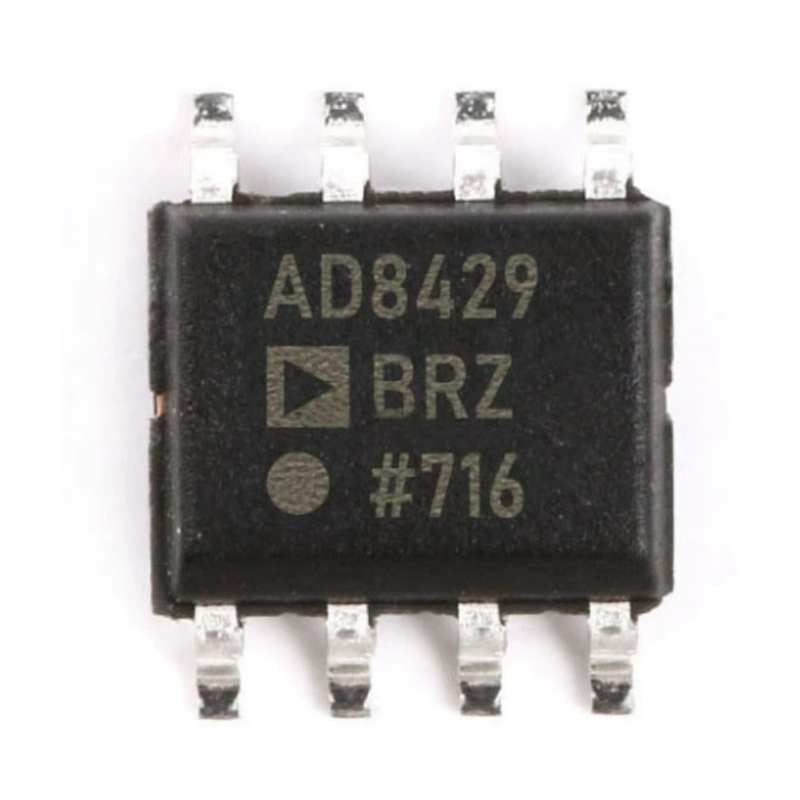

Product Model: AD8429BRZ
Product Description:
The AD8429BRZ is a high-precision, low-noise, instrumentation amplifier designed for a wide range of precision measurement and signal conditioning applications. With its exceptional combination of high common-mode rejection ratio (CMRR), low offset voltage, and low input noise, this amplifier is an ideal choice for applications that require accurate amplification of small differential signals in the presence of common-mode interference.
Key Features:
-
High Precision: The AD8429BRZ offers excellent precision with a low offset voltage of less than 150 μV, ensuring accurate amplification of small differential signals and minimizing measurement errors.
-
High Common-Mode Rejection Ratio (CMRR): The amplifier provides a CMRR of 120 dB at 60 Hz, allowing it to reject common-mode interference and maintain accurate signal amplification even in noisy environments.
-
Low Input Voltage Noise Density: With a low input voltage noise density of 6 nV/√Hz, the AD8429BRZ delivers excellent signal fidelity, making it suitable for applications that demand low noise amplification.
-
Wide Bandwidth: The amplifier offers a wide -3 dB bandwidth of 1 MHz, enabling it to handle a broad range of frequencies and accurately amplify dynamic signals.
-
Flexible Gain Configuration: The AD8429BRZ allows for flexible gain configuration with a gain range of 1 to 10,000, providing versatility in signal amplification for various applications.
-
Extended Temperature Range: The AD8429BRZ operates reliably over a wide temperature range, from -40°C to +125°C, making it suitable for industrial, automotive, and other harsh environment applications.
Table: Electrical Specifications
| Parameter | Value |
| Supply Voltage Range | ±2.25 V to ±18 V |
| Input Voltage Range | ±Vs - 1.2 V |
| Offset Voltage | <150 μV |
| Input Voltage Noise Density | 6 nV/√Hz |
| CMRR | 120 dB at 60 Hz |
| -3 dB Bandwidth | 1 MHz |
| Gain Range | 1 to 10,000 |
| Operating Temperature Range | -40°C to +125°C |
| Package | 8-Lead SOIC |
The AD8429BRZ is an excellent choice for a wide range of precision measurement and signal conditioning applications, including bridge amplification, data acquisition systems, medical instrumentation, and strain gauge amplification. Its high precision, high CMRR, and low noise make it a versatile and reliable amplifier for demanding differential signal amplification requirements.
With its compact 8-lead SOIC package, the AD8429BRZ is easy to integrate into your design, saving valuable board space. The amplifier's robust design, wide bandwidth, and extended temperature range ensure exceptional performance and reliability in various operating conditions.
Whether you are designing a precision measurement system that requires accurate amplification of small differential signals or a signal conditioning circuit that demands high CMRR and low noise, the AD8429BRZ provides the performance and flexibility you need. Trust the AD8429BRZ for your signal conditioning needs and experience exceptional precision, low noise, and quality in your application.
