Product Name: ADUM1401BRWZ-RL
Product Description:
The ADUM1401BRWZ-RL is a high-performance, quad-channel digital isolator designed for applications requiring robust signal isolation and noise immunity. This device offers reliable isolation and precise signal transmission, making it an excellent choice for industrial automation, motor control, and power management systems. With its advanced features and compact design, the ADUM1401BRWZ-RL ensures safe and efficient operation in demanding environments.
Key Features:
-
Quad-Channel Isolation: The ADUM1401BRWZ-RL features four independent isolation channels, providing simultaneous isolation for multiple signals. It ensures complete isolation and protection for critical signals, enhancing system safety and reliability.
-
High-Speed Data Transmission: With a maximum data rate of 25 Mbps, this digital isolator enables fast and efficient signal transmission. It is suitable for applications that require real-time data transfer and high-speed communication.
-
Robust Isolation Barrier: The ADUM1401BRWZ-RL incorporates advanced integrated transformer technology, offering a reinforced isolation barrier that protects sensitive circuitry from voltage transients, noise, and ground loops. It ensures reliable signal transmission and prevents damage to connected devices.
-
Enhanced ESD Protection: This digital isolator provides built-in electrostatic discharge (ESD) protection, safeguarding the device and the connected circuits against damaging voltage spikes. It enhances system reliability and protects sensitive components.
-
Low Power Consumption: The ADUM1401BRWZ-RL is designed with low power requirements, contributing to energy efficiency and reducing overall system power consumption. It is well-suited for battery-powered devices or systems with limited power resources.
-
Wide Temperature Range: With an operating temperature range of -40°C to +105°C, this digital isolator is suitable for use in extreme temperature environments. It ensures reliable performance and signal integrity in demanding industrial applications.
-
Compact and Space-Saving Package: The ADUM1401BRWZ-RL is available in a compact 20-lead SOIC package, offering a small footprint and easy integration into space-constrained applications.
Applications:
-
Industrial Automation: The ADUM1401BRWZ-RL is ideal for industrial control systems, motor drives, and factory automation applications. It provides reliable signal isolation and noise immunity for precise and secure communication.
-
Power Management: With its robust isolation and high-speed data transmission, this digital isolator is well-suited for power management systems, including power supplies, inverters, and battery management. It ensures safe and efficient signal isolation in high-power applications.
-
Motor Control: The ADUM1401BRWZ-RL is suitable for motor control applications, such as servo drives, stepper motor control, and robotics. It provides galvanic isolation and noise immunity, ensuring accurate and reliable control signals for motor operation.
Table: Product Specifications
| Specification | Value |
| Number of Channels | 4 |
| Data Rate | Up to 25 Mbps |
| Supply Voltage | 2.7 V to 5.5 V |
| Isolation Voltage | 2.5 kVrms |
| Operating Temperature Range | -40°C to +105°C |
| Package | 20-lead SOIC |
| ESD Protection | Yes |
In summary, the ADUM1401BRWZ-RL is a high-performance quad-channel digital isolator that provides robust isolation, high-speed data transmission, and enhanced noise immunity. With its compact design and wide temperature range, it is suitable for industrial automation, motor control, and power management applications. Trust in the ADUM1401BRWZ-RL to deliver reliable and secure signal isolation, ensuring safe and efficient operation in demanding environments.
Amplifier,Power Management ICs,Memory ICs,MCU,Microcontroller,Data Acquisition ICs,Embedded Processor,Clock Timing ICs,Interface ICs,Logic ICs,Radio Frequency ICs,Sensor,Discrete Semiconductor Products,Electronics Passive Components
Visit www.gselectro.com for more information
|
|

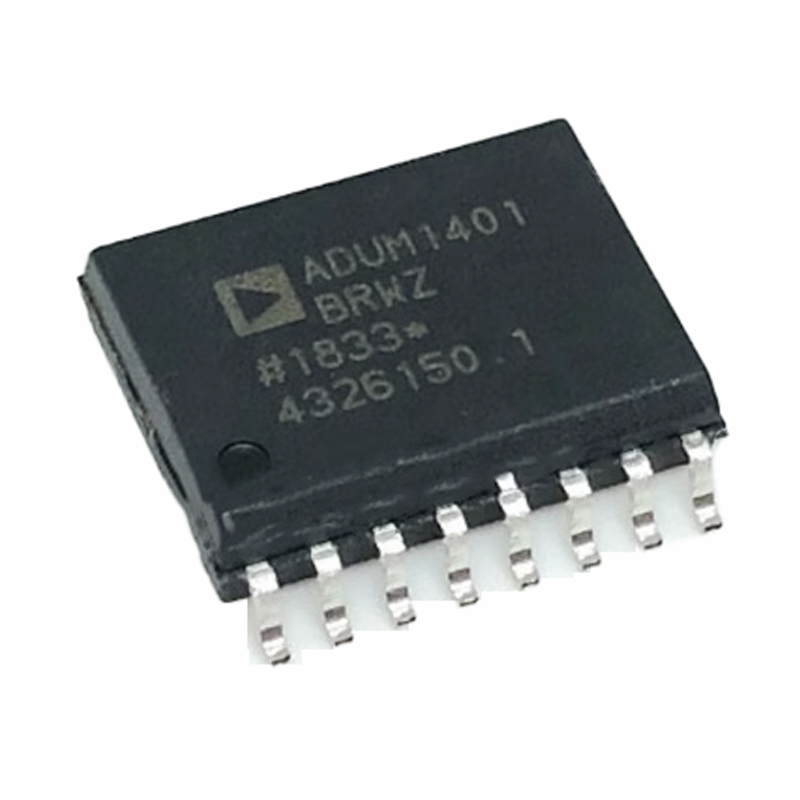

New And Original Integrated circuit ADUM1401 ADUM1401BRWZ Interface components IC Chips SOIC-16 ADUM1401BRWZ-RL Images
|
