electronic component 1N4148WT integrated circuit chips

Description : 1N4148WT

Stock : 10000

MOQ : 1

Price : USD 0.01-9.99/ Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Shipping Method : LCL, AIR, FCL, Express

P/N : 1N4148WT

PKG : SOD-523F-2

Brand : ON

QTY : 1pcs

D/C : 2023+

D/T : In stock

Contact Now

Good quality Electronic Component provider from China——GS Electronics,

electronic component 1N4148WT integrated circuit chips

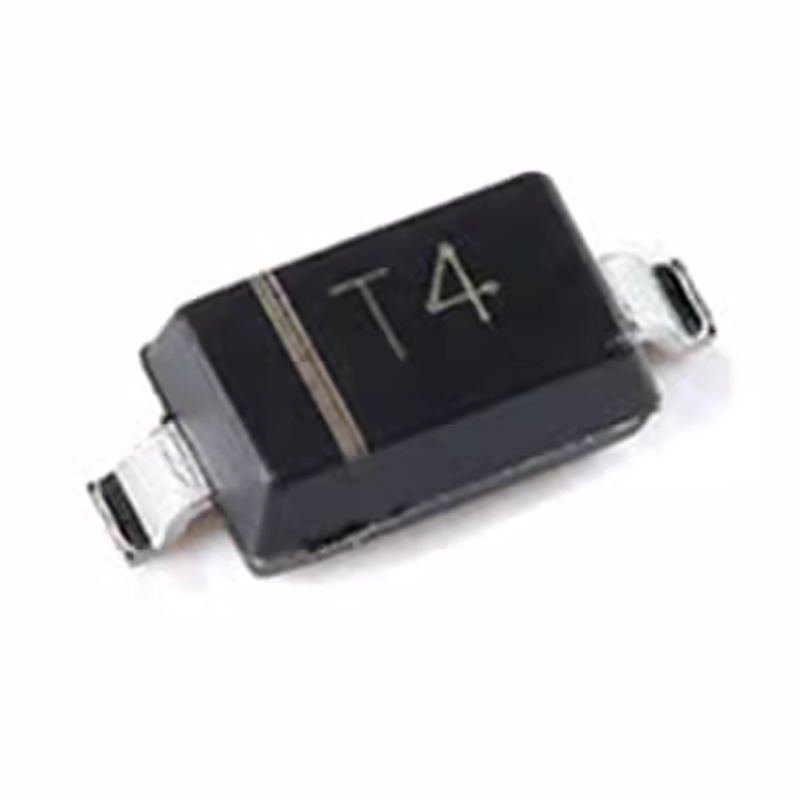

Product Details: 1N4148WT Fast Switching Diode

Introduction: The 1N4148WT is a high-performance fast-switching diode designed to cater to a wide range of applications in the electronics industry. Renowned for its precision, reliability, and speed, this diode is an indispensable component for engineers and designers seeking to enhance the efficiency and accuracy of their projects.

Specifications:

  • Type: Fast Switching Diode
  • Package: SOD-323
  • Maximum Reverse Voltage (V_RRM): 100V
  • Average Rectified Forward Current (I_F(AV)): 200mA
  • Peak Forward Surge Current (I_FSM): 4A
  • Reverse Recovery Time (t_rr): 4ns
  • Forward Voltage Drop (V_F): 1V (at I_F = 10mA)
  • Operating Temperature Range: -65°C to +175°C

Key Advantages:

  1. Rapid Switching Speed: The 1N4148WT is celebrated for its ultra-fast reverse recovery time of just 4 nanoseconds, making it an ideal choice for high-frequency applications.

  2. High Reliability: Known for its dependability and durability, it has earned a solid reputation for providing consistent and stable performance.

  3. Compact Package: The SOD-323 package is space-efficient, making it perfect for designs with limited room while still delivering robust performance.

  4. Versatile Voltage Rating: With a maximum reverse voltage of 100V, it accommodates a broad spectrum of applications.

  5. Low Forward Voltage Drop: The diode maintains high efficiency thanks to its low forward voltage drop of 1V, which minimizes power loss.

Key Features:

  1. High-Speed Switching: The 1N4148WT excels in applications that require swift switching, such as in switching power supplies, pulse shaping, and RF circuits.

  2. Minimal Reverse Recovery Time: Its fast reverse recovery time significantly reduces switching losses, enhancing overall efficiency.

  3. Robust Design: This diode is constructed to withstand a wide temperature range, making it suitable for both commercial and industrial environments.

  4. Efficient Power Management: The low forward voltage drop ensures minimal power dissipation, contributing to energy efficiency.

  5. Voltage Clamping: It offers superior voltage clamping capabilities, protecting sensitive components within the circuit from voltage spikes and transients.

Applications:

The 1N4148WT fast switching diode finds applications across various industries and in the following scenarios:

  1. Electronics Manufacturing: It plays a pivotal role in the production of consumer electronics, including smartphones, laptops, and power supplies.

  2. Power Supplies: Commonly used in switching power supplies to manage power flow efficiently and reliably.

  3. Signal Clipping and Clamping: Employed for signal clipping, clamping, and protection in audio and video equipment to ensure clean and undistorted signals.

  4. RF and Microwave Applications: Found in RF and microwave circuits for signal demodulation, mixing, and tuning in radios, communication equipment, and radar systems.

  5. Lighting: Used in LED lighting circuits to control and protect against voltage transients and surges, ensuring the longevity of LED fixtures.

  6. Automotive Electronics: Applied in various automotive systems, such as electronic control units (ECUs), lighting control modules, and vehicle communications.

  7. Industrial Control Systems: Integrated into industrial control systems, including motor drives, automation, robotics, and instrumentation.

In summary, the 1N4148WT fast switching diode stands as a versatile, reliable, and efficient component that excels in applications requiring rapid switching and voltage clamping. Its compact design and robust construction make it suitable for a wide array of industries, including electronics manufacturing, power supplies, RF applications, and more. When precision, speed, and efficiency are essential for your electronic projects, the 1N4148WT is the diode of choice to ensure optimal performance and reliability.
